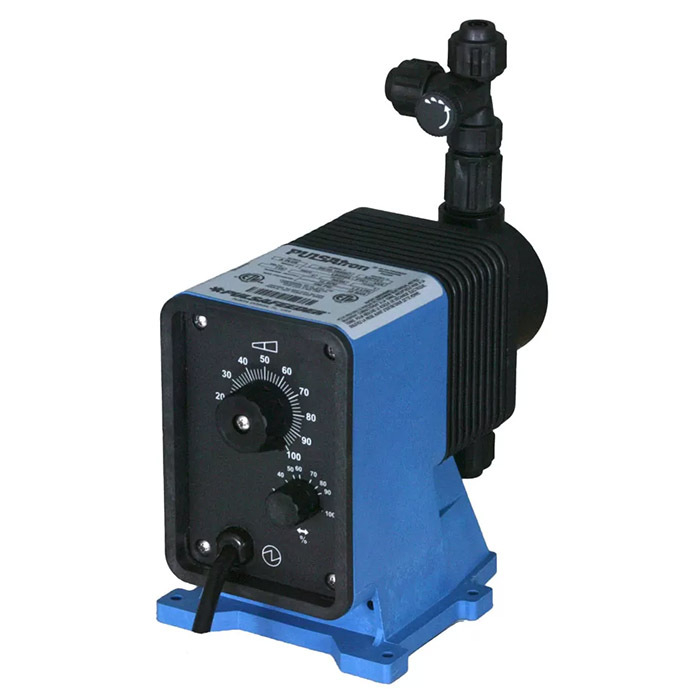

The PULSAtron Series A Plus offers manual function controls of stroke length and stroke rate as standard, with the option to select external pace for automatic control. Other optional features include external stop function and 2000:1 turndown control. Ten distinct models are available, having pressure capabilities to 250 psig (17 bar), and flow capacities to 58 gpd (9.1 lph), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

Flow: 6 – 58 GPD (0.90 – 9.1 LPH) 0.25 – 2 GPH
Pressure: 50 – 250 PSI (3.3 – 17

BAR)Features:

• Manual control by onboard adjustable stroke rate and stroke length knobs


• Highly reliable timing circuit


• Circuit protection against voltage and current upsets


• Solenoid protection by thermal overload with auto-reset


• Water resistant for outdoor and indoor applications


• Internally dampened to reduce noise


• Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics


• Few moving parts


• Wall mountable


• Safe and easy priming with durable leak-free bleed valve assembly (standard)

• Industry:
  Aquaculture, Chemical, Clinical/Medical Lab, Drinking Water, Fertigation, Food & Beverage, Oil & Gas, Petroleum, Storm Water, Waste Water, Hospitality, Agriculture
