OVERVIEW:

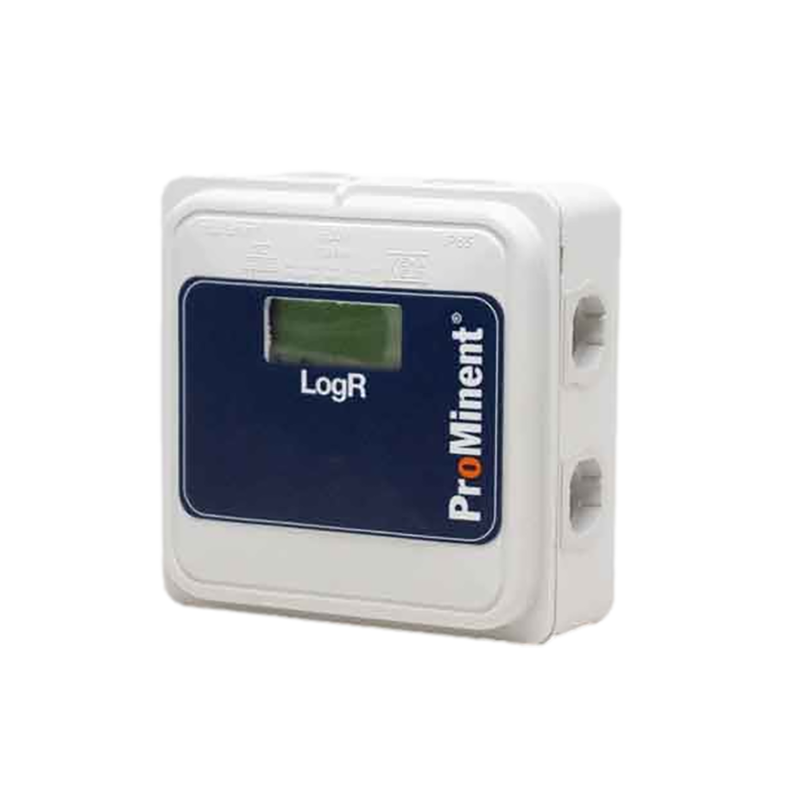

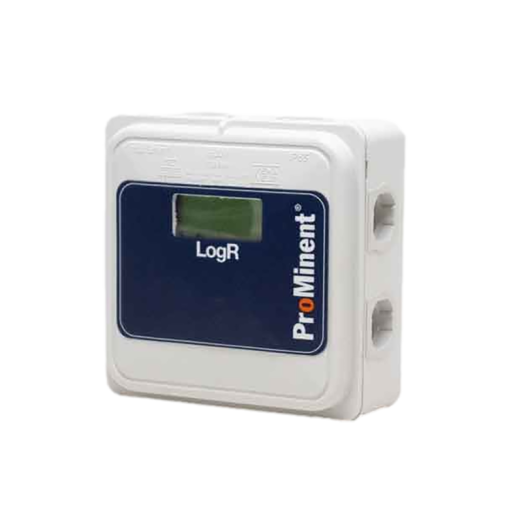

The ProMinent® LogR is a single channel corrosion rate monitor using Linear Polarization Resistance (LPR) to measure the corrosion rate of metals in cooling water treatment applications. Weight loss coupon results can take weeks or months. With the LogR, a reading is taken every 2.5 minutes giving accurate corrosion rates instantly. Select from carbon steel, copper or admiralty sensors.

FEATURES:

• No lengthy corrosion coupon delays – instant measurement


• Corrosion rate updates every 2.5 minutes


• Data logs every 5 minutes


• Stores up to one year of log data


• Pre-configured for your metallurgy


• LPR technology


• CE Approved


• Alarm Relay

LOGR SPECIFICATIONS:

Corrosion Rate Measure & Display: 0.01 to 50.0 mpy for steel
Updates every 150 seconds

4-20mA: Output Three wire: Power, Ground & 4-20mA out Resolution nominally 1 part in 4000
Data Logging: 1 Year @ 5-minute intervals
Alarm Contacts: Normally closed Rated 24VDC, 250mA Thermally fused 300mA
Display & Data Link: 2×8 LCD Display USB Host emulation
UP-DOWN & Model Switches: UP & DOWN pushbuttons 8 selectable display modes, 0 to 7
Conductivity: 50 to 9999 uS
Power : 9-24VDC, 100mA max. Polarity Protected
LogR Enclosure: Non-metallic, IP65 4 3/8″ x 4 3/8″ x 1 3/4″ 110mm x 110mm x 45mm
Wiring Terminal Blocks: Rated AWG 16-26 3.5mm spacing
