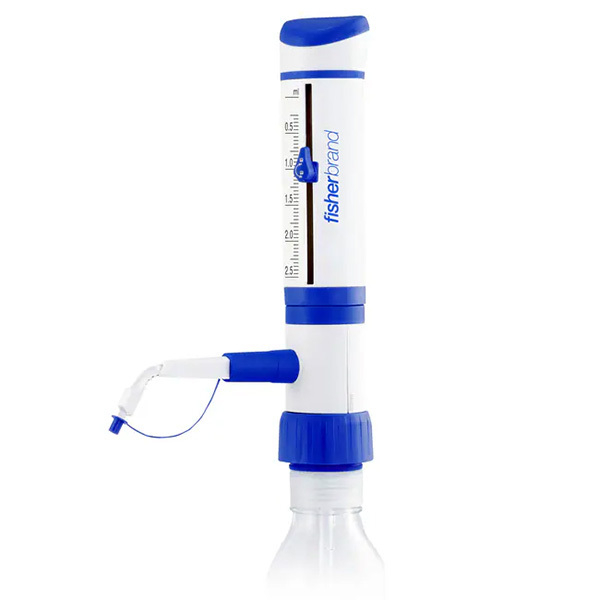

Bottletop Dispenser

DESCRIPTION:

Provides smooth, effortless dispensing

• Wetted parts are PTFE, FEP and borosilicate glass (allows instrument to be used with a wide variety of chemicals)


• 7 volume ranges to choose from


• Bubble-free dispensing


• Effortless plunger movement


• Disassembles for easy cleaning and servicing


• Autoclavable at 121°C, 15 psi for 10 to 15 minutes


• Each bottle top dispenser includes one 28mm, 32mm, 36mm, 40mm, 45mm bottle neck adaptor

COMPONENT DESCRIPTION:

• Piston: PTFE


• Cylinder: Glass


• Volume Adjustment Knob: Screw Type


• Valve Housing: PTFE


• Valve Assembly: Glass Ball & Seal


• Discharge Assembly: PTFE


• Delivery Tube: FEP


• Inlet Tube: FEP, 13 in. (with extension)


• Calibration: Individually calibrated and certified (in-lab by user is also possible)


• Accuracy & Reproducibility: In accordance with ISO 8655 standards


• Compability: Excellent with most reagents

 SPECIFICATIONS:

Accuracy: ±0.6% (±0.015mL)
Autoclavable
Material: PTFE, FEP, Borosilicate Glass
Includes: 13-in. inlet tube (with extension)
Precision: ±0.2% (±0.005mL)
Product Type: Analog Bottletop Dispenser
Channels: 1
Volume (Metric): 0.25 to 2.5 mL
Increments: 0.05 mL
