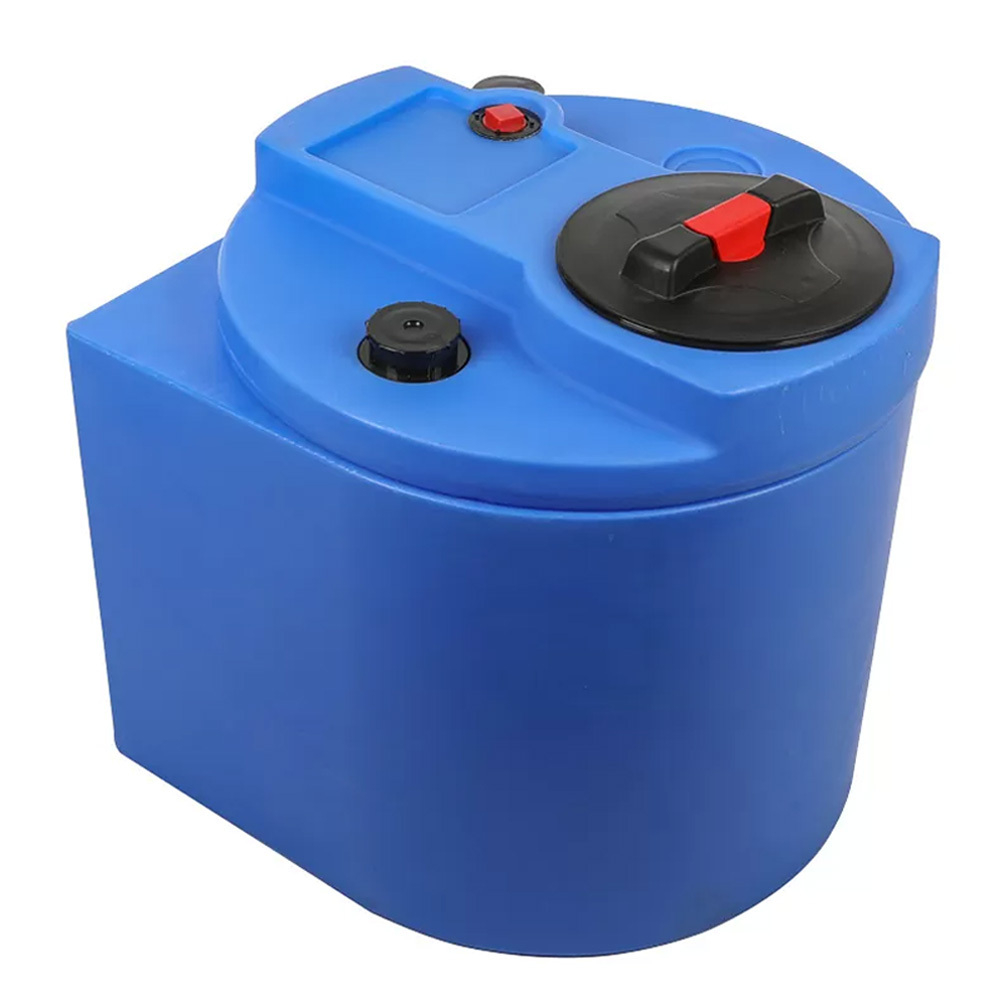

160GL Double Wall Tank & 240GL Ubasin OF, Natural

Code: DW160

Product Type: U Shape Tank 2 Piece

Item Type: DW

Volume: 160 Gallon

Brand: AquaPhoenix Scientific


Aquaphoenix Products industry exclusive design features true 150% containment, visual/level leak detection port, mixer pad and inlayed pump mount with suction tube containment. Tanks now available from 7.5 to 220 gallon primary tank capacities. Tanks come standard with bung fitting on primary tank and one on containment tank.

Shape: U-shape

Containment: 150% Containment

Description: 2-piece (inner and outer tank)

Size (gal): 160

Fittings: 8” manway (2) 2” FNPT fitting (QTY 1 on inner tank. QTY 1 on outer tank) Pump mount pad DW120+ have QTY 2 pump pads with suction tube access Mixer (utility) pad Secondary tank leak detection port

Spec. Gravity: 1.9


  • Industry:
    Aquaculture, Chemical, Clinical/Medical Lab, Drinking Water, Fertigation, Food & Beverage, Oil & Gas, Petroleum, Storm Water, Waste Water, Hospitality, Agriculture
