TankScan Non-Contact Radar Level Monitor – 1-Year Cellular Service (Verizon) Included

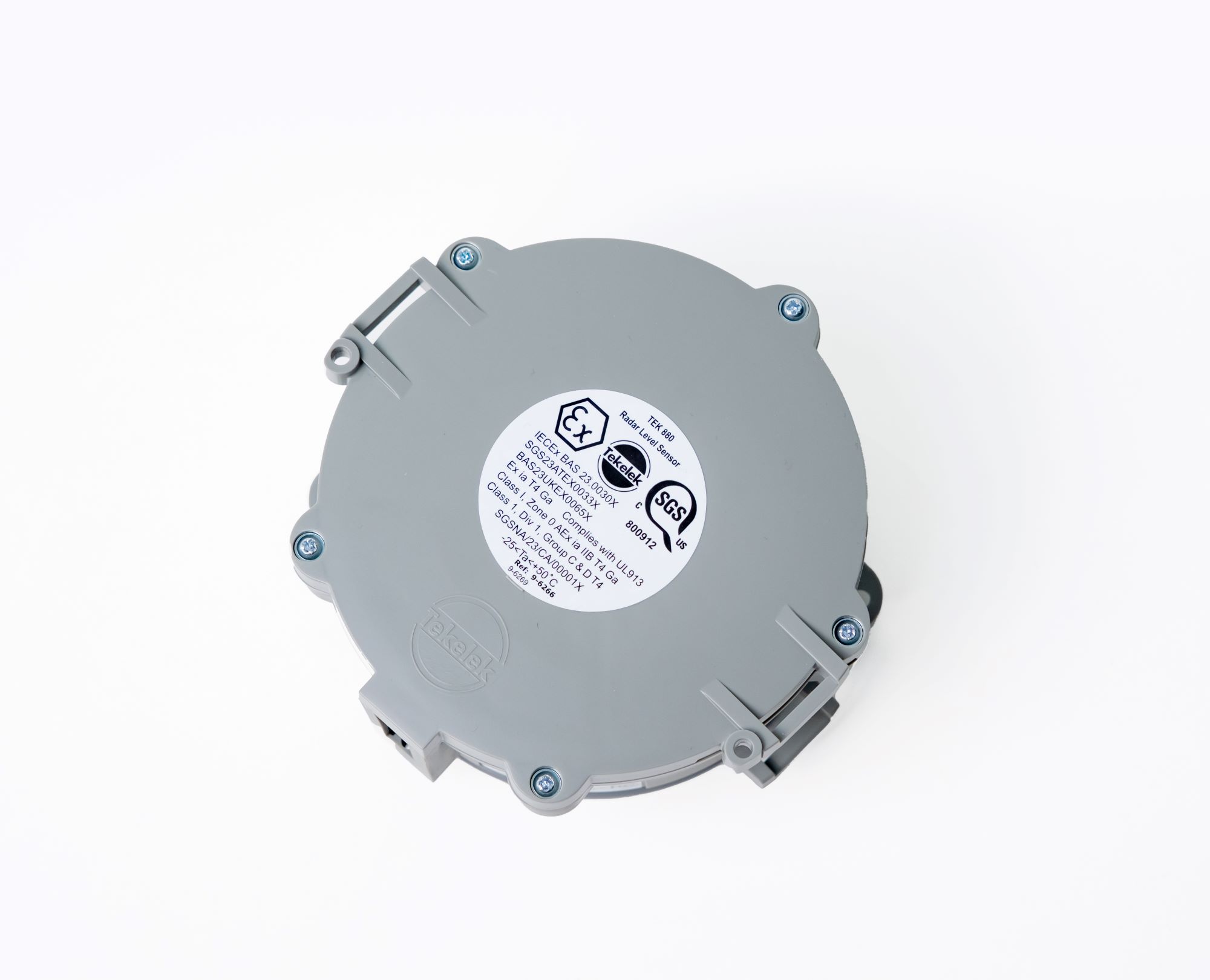

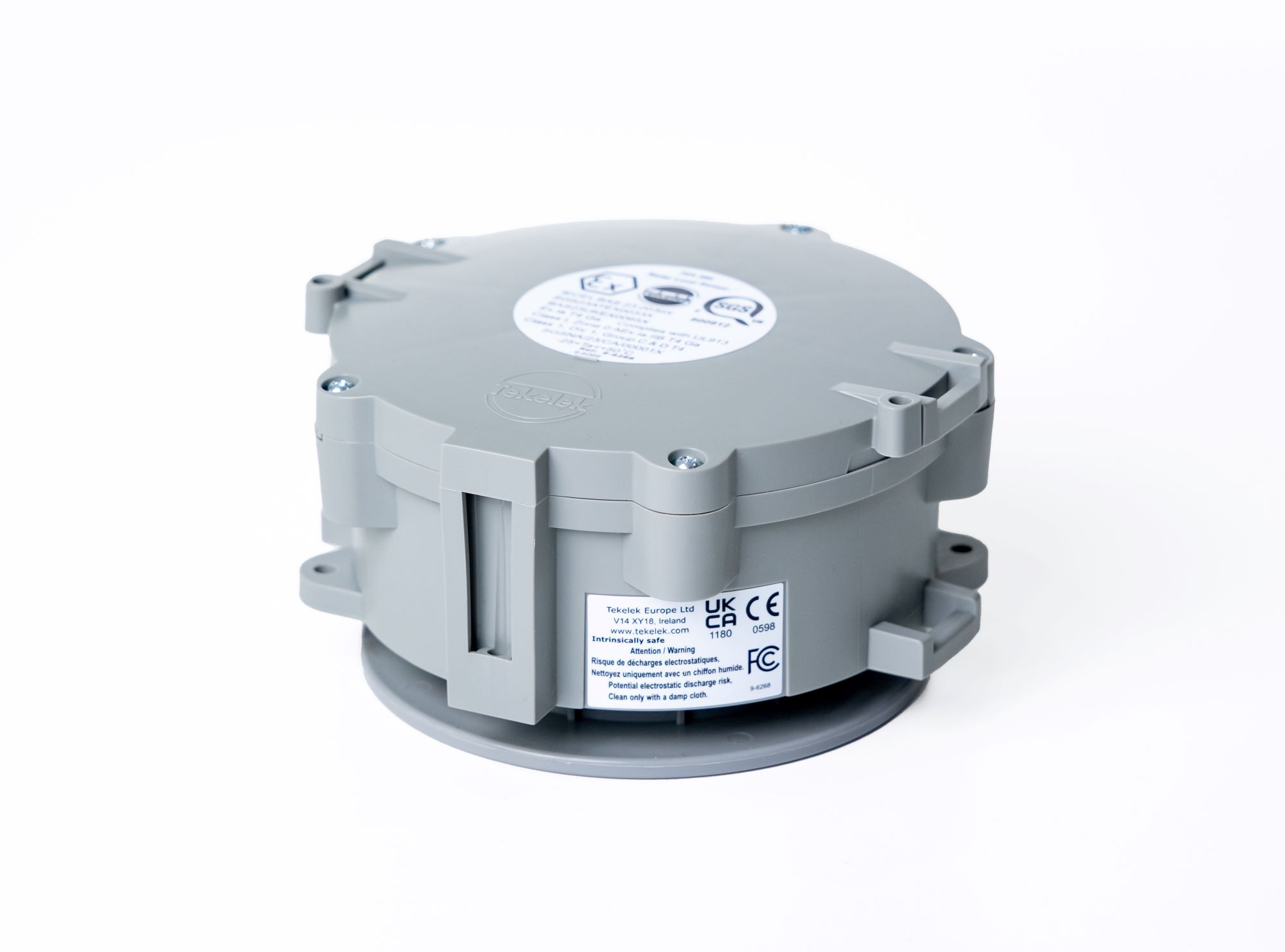

The TankScan TSRT880 Non-Contact Radar Level Monitor, powered by AquaPhoenix, is an intrinsically safe, battery-operated sensor purpose-built for remote tank monitoring in C1D1 hazardous locations. Using advanced radar technology, the TSRT880 delivers precise, non-invasive liquid level readings—even through plastic tank tops—with no need to drill or modify the tank.

Perfect for indoor or outdoor use, this rugged device features a weatherproof IP68-rated PVDF enclosure and runs on a replaceable lithium battery with an estimated 5-year life. It communicates via 4G LTE cellular (with 2G fallback), requiring no local network infrastructure. The monitor captures level readings four times daily and transmits once daily, with an option for instant manual reporting via magnetic activation.

Easily integrated with the AquaPhoenix Intelligence Platform (AIP), the TSRT880 enables seamless data access, smart route planning, and proactive service alerts—empowering operators to scale efficiently, reduce costs, and improve customer satisfaction.

Key Features:

• Includes 1-Year (Verizon) Cellular Service – ready to deploy immediately


• TankScan powered by AquaPhoenix – trusted performance with powerful analytics


• C1D1 Hazardous Area Rated – compliant for use in classified environments


• Non-contact radar sensing – measures through plastic tank tops, no holes required


• Long-life lithium battery – up to 5 years of autonomous use


• Cellular communication – 4G LTE with 2G fallback for remote deployments


• IP68-rated PVDF enclosure – withstands harsh weather and chemical environments


• Flexible mounting – fits 2" threaded ports or mounts externally with adhesive flange


• Daily automated reports plus manual reporting via magnetic trigger


• Integrated with AIP – view tanks online, set alerts, and analyze usage


• Measurement Range: 6 in to 12 ft with ±1% accuracy


• Data Outputs: Liquid level, temperature, battery status
