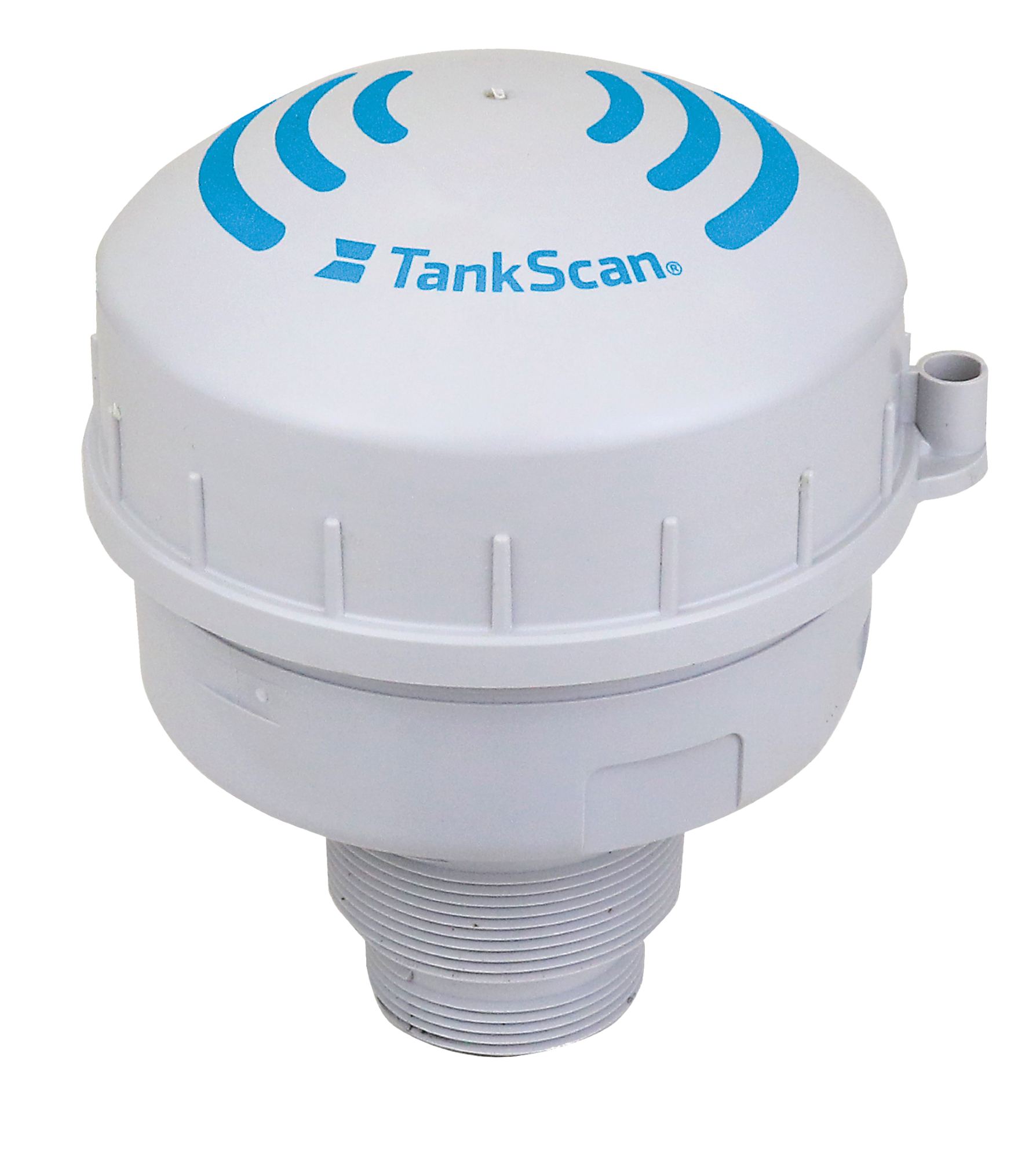

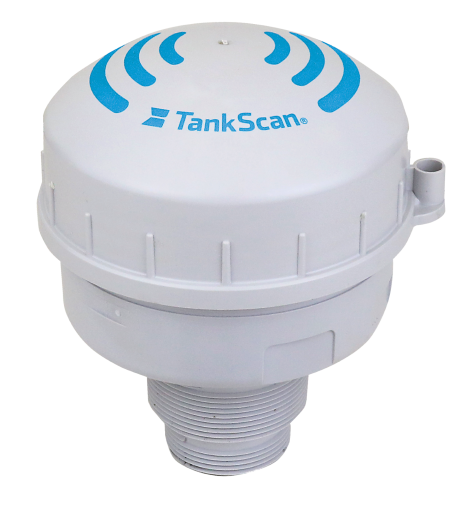

TankScan Non-Contact Radar Cellular Tank Monitoring System, AT&T, Medium Range

The TankScan Non-Contact Radar Cellular Tank Monitoring System (AT&T, Medium Range) delivers reliable, remote tank level monitoring using advanced radar technology—without touching the liquid. Designed for medium-range measurement applications, this 4G LTE cellular unit operates on the AT&T network and easily mounts to tanks, totes, and containers, including poly tanks.

Its integrated non-contact radar sensor can detect through condensation, vapors, and plastic walls, making it ideal for challenging environments. The weatherproof, battery-powered design supports installation in remote areas without power infrastructure, and integrates seamlessly with the AquaPhoenix Intelligence Platform (AIP) for real-time visibility and smart route optimization.

 Key Features:

• Medium-Range Radar Sensing: Accurately measures from 4 inches to 20 feet (±0.5")


• Non-Contact Operation: Detects liquid levels without direct contact—ideal for corrosive or vapor-heavy environments


• Cellular Connectivity: Built-in 4G LTE modem (AT&T) for real-time remote access


• Battery Powered: Operates up to 2 years (at 12-hour reporting intervals) with replaceable 6V battery pack


• Rugged Housing: Weatherproof, corrosion-resistant polycarbonate construction (NEMA 4X)


• Smart Monitoring Software: Access data via the AquaPhoenix Intelligence Platform (AIP) with alerts, reports, and multi-user access


• Easy Installation: Threaded mounting (1½” or 2” NPT) with no wiring required


• Scalable: Supports monitoring from a single tank to large multi-site operations
