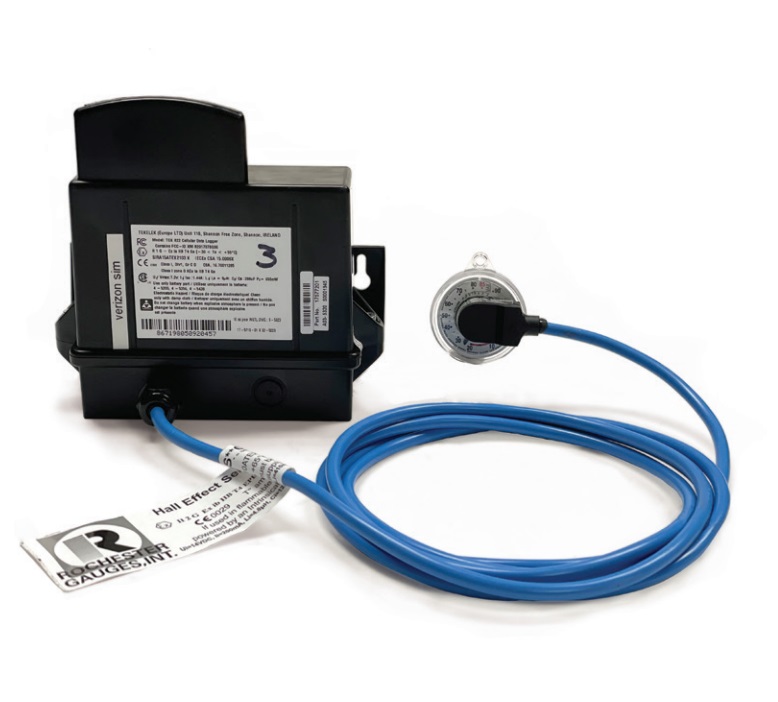

TankScan® TSD822 Propane Tank Monitoring System – Junior Gauge Compatible

Code: TSDJ822C4L1H1

Contains Mercury: No

Marked Hazardous: No

The TankScan® TSD822 Propane Tank Monitoring System is an intrinsically safe, battery-powered remote monitoring solution built for hazardous environments and extreme cold conditions down to -22ºF (-30ºC). It includes an integrated dial gauge reader compatible with Rochester Junior dials, housed in a durable IP68-rated enclosure.


Designed for locations without access to electrical power or wired connectivity, the TSD822 transmits hourly tank data—level, temperature, and battery status—via the 4G LTE Cat-M1 cellular network and reports it daily to the AquaPhoenix Intelligence The

TankScan® TSD822 is a rugged, battery-powered propane tank monitor designed for hazardous and extreme cold environments (down to -22°F/-30°C). Featuring an integrated dial gauge reader compatible with Rochester Junior dials and housed in a durable IP68 enclosure, it’s ideal for locations without power or wired connectivity. The TSD822 transmits hourly tank level, temperature, and battery data via 4G LTE Cat-M1, with daily reporting to the AquaPhoenix Intelligence Platform. Access real-time tank insights, receive alerts, and optimize routes through an easy-to-use web dashboard—boosting efficiency without added fleet or staff.


Key Features:

Key Features:

  • Class I Div 1 / Zone 0 Certified – CSA- and UL913-compliant for hazardous locations
  • Senior & Junior Dial Compatibility – Supports 5V Rochester dial gauge formats
  • Reliable Cellular Communication – 4G LTE Cat-M1 (Verizon + Multi-Carrier)
  • Rugged Weatherproof Design – IP68-rated, non-corrosive, fully sealed
  • Extreme Temperature Operation – -22°F to 131°F (-30°C to 55°C)
  • Long-Lasting Power – 10-year lithium battery pack, maintenance-free
  • Hourly Data Collection – Daily reporting with local manual trigger option
  • Integrated GPS – Tracks monitor locations for mobile or fixed tanks
  • AquaPhoenix Intelligence Platform (AIP) – Web dashboard, alerts, analytics
  • Scalable System – Monitor from 1 to 100,000+ tanks
  • Email Notifications – Custom alerts based on user-defined tank thresholds
  • Operational Efficiency – Reduce manual checks, improve delivery and pickup routing

Specifications:

Specifications:

9-5940-03-TEK-822-LPG-Logger-4G-NB-IoT_CAT-M1-Installation-Guide.pdf

Resources:

Resources:



Product Documentation

PROCEDURES & TECHNICAL DATA SHEETS

Please use the button below to find our procedures,instructions and technical data sheets to all our products.
You will need to search the item number for all our products & test kits.

Procedures & Instructions



SAFETY DATA SHEETS (SDS)

You will need to search the item number for all our products & test kits.
Please note you will need to search the main item number, with out the size designation code. Example: Item #SN3385-G, SN3385 should be used.

Search for SDS



CERTIFICATE OF ANALYSIS

Please complete the form linked below and we will promptly email the requested information.
NOTE: For test kits, please request certificates for each reagent separately by entering reagent part numbers and lot numbers.

Certificate of Analysis Request
US$380.00
EA (1)
