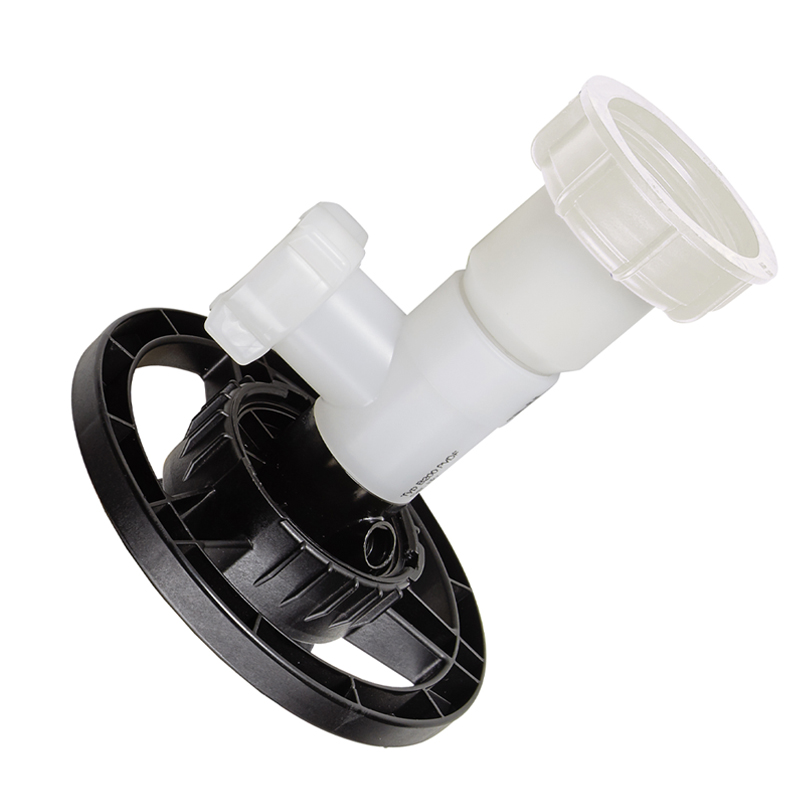

Lutz B200 PVDF Horizontal Pump Tube – IBC Bottom Connection, Chemical-Resistant, Leak Detection Option

Code: 0123-421

Contains Mercury: No

Marked Hazardous: No

Engineered for precision and safety, the B200 PVDF Horizontal Pump Tube is the ideal solution for efficiently emptying aggressive and hazardous liquids from IBC containers and tanks. Designed as a superior alternative to vertical drum pumps, it ensures minimal product loss, easy installation, and reliable performance even with highly corrosive acids and alkalis.

Key Features

Key Features

Designed for aggressive, aqueous, and slightly viscous media
Ideal for concentrated acids and alkalis including hydrofluoric and sulphuric acid
Horizontal bottom connection for efficient container emptying
Compatible with standard 2" NPS IBC connections
Optional leakage detection with automatic motor emergency stop
Low product loss during disconnection
Available with electric or compressed air drive options
Simple installation and easy dismantling
Compact, space-saving design
Durable PVDF pump tube for high chemical resistance
ETFE/PTFE bearings for enhanced longevity
Mechanical seal construction for safe operation
Handles viscosities up to 1000 mPas
Supports liquid temperatures up to 212°C
Maximum flow rate up to 15.06 g/min
Delivery head up to 52 m wc
