Lutz B36 MSL-PP Drum Pump Set – 120V, 47" Sealless PP Tube, High-Head Impeller

Code: 0205-112-1

Product Type: Drum Pump Set

Contains Mercury: No

Marked Hazardous: No

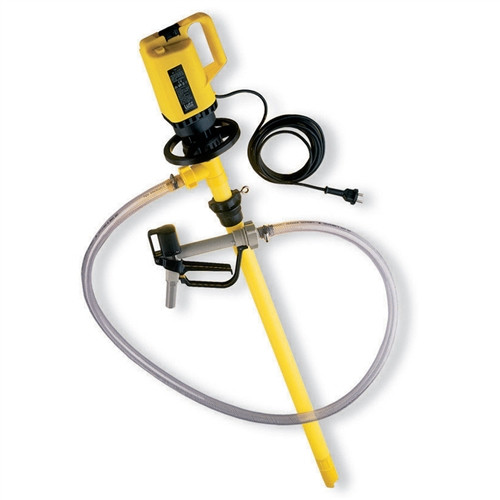

The Lutz B36 MSL-PP Drum Pump Set is engineered for safe, high-efficiency transfer of chemical liquids, even at greater immersion depths. With a 47" sealless polypropylene tube, high-head axial-flow impeller, and corrosion-resistant Hastelloy C shaft, it handles viscous fluids up to 760 CPS. Complete with motor, hose, clamps, barrel adapter, and wall hanger, this set ensures reliable and convenient pumping for industrial and laboratory applications.

Key Features

Key Features

  • Complete drum pump set including motor, pump tube, hose, clamps, nozzle, barrel adapter, and wall hanger
  • 120V universal motor with 0.85 HP and 16 ft cord
  • Sealless polypropylene tube for leak-free operation
  • High-head axial-flow polypropylene impeller
  • Hastelloy C drive shaft for superior chemical resistance
  • Handles fluids up to 760 CPS viscosity
  • Maximum flow rate up to 13.2 GPM
  • Maximum head up to 31 feet
  • Suitable for liquids with specific gravity up to 1.1–1.4
  • ETFE / PTFE bearing housing for durability
  • Immersion depth of 47 inches for deep drum transfer
  • Open drip-proof (ODP) motor enclosure for ventilation
  • Maximum operating temperature 122°F

Resources

Resources

Lutz-Pumps-Drum-And-Container-Pumps.pdf

Product Documentation

PROCEDURES & TECHNICAL DATA SHEETS

Please use the button below to find our procedures, instructions and technical data sheets to all our products.
You will need to search the item number for all our products & test kits.

Procedures & Instructions



SAFETY DATA SHEETS (SDS)

You will need to search the item number for all our products & test kits.
Please note you will need to search the main item number, without the size designation code. Example: Item #SN3385-G, SN3385 should be used.

Search for SDS



CERTIFICATE OF ANALYSIS

Please complete the form linked below and we will promptly email the requested information.
NOTE: For test kits, please request certificates for each reagent separately by entering reagent part numbers and lot numbers.

Certificate of Analysis Request
US$1,734.00
EA (1)
