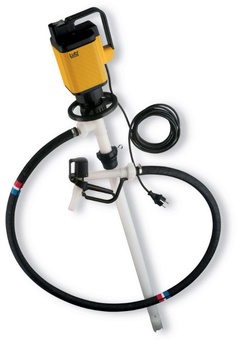

Lutz B55T-5 MSL-PVDF Drum Pump Set – 120V, 39" Sealless PVDF Tube, High-Head Impeller

Code: 0205-201-1

Product Type: Drum Pump Set

Contains Mercury: No

Marked Hazardous: No

Designed for the safe handling of highly corrosive acids and alkaline solutions, the Lutz B55T-5 MSL-PVDF Drum Pump Set delivers precision, durability, and chemical resistance. Featuring a 39" sealless PVDF tube, ETFE high-head impeller, and Hastelloy C shaft, it ensures leak-free operation and long service life. Complete with electric or air-driven motor, chemical hose, and all necessary accessories, this set is ideal for industrial, laboratory, and process applications requiring aggressive chemical transfer.

Key Features

Key Features

Complete drum pump set with motor, PVDF sealless pump tube, hose, clamps, nozzle, barrel adapter, and wall hanger
Electric (120V, 0.68 HP) or MD2xL air motor options
High-head axial-flow ETFE impeller for efficient chemical transfer
Hastelloy C drive shaft for superior corrosion resistance
Handles highly corrosive acids and bases safely
Maximum flow capacity up to 13.2 GPM
Maximum head up to 26 feet
Suitable for fluids with specific gravity up to 1.6
PTFE bearing housing for durability
Immersion depth of 39 inches
Totally Enclosed Fan Cooled (TEFC) motor for protection against harsh environments
Maximum operating temperature 212°F (100°C)
Handles viscosities up to 500–760 CPS

Resources

Resources

Lutz-Pumps-Drum-And-Container-Pumps.pdf

Product Documentation

PROCEDURES & TECHNICAL DATA SHEETS

Please use the button below to find our procedures, instructions and technical data sheets to all our products.
You will need to search the item number for all our products & test kits.

SAFETY DATA SHEETS (SDS)

You will need to search the item number for all our products & test kits.
Please note you will need to search the main item number, without the size designation code. Example: Item #SN3385-G, SN3385 should be used.

CERTIFICATE OF ANALYSIS

Please complete the form linked below and we will promptly email the requested information.
NOTE: For test kits, please request certificates for each reagent separately by entering reagent part numbers and lot numbers.

Zoom

Qty:

US$4,160.00

EA (1)
