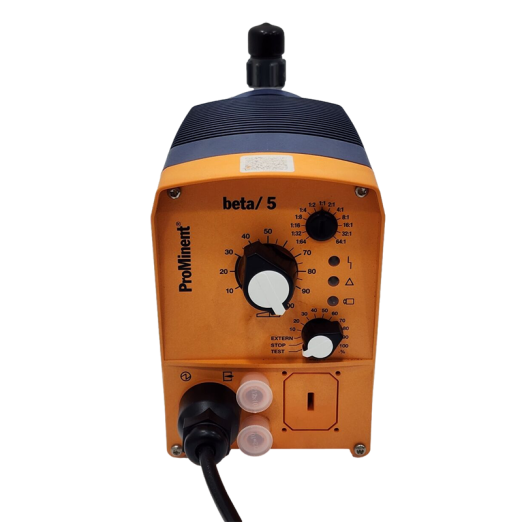

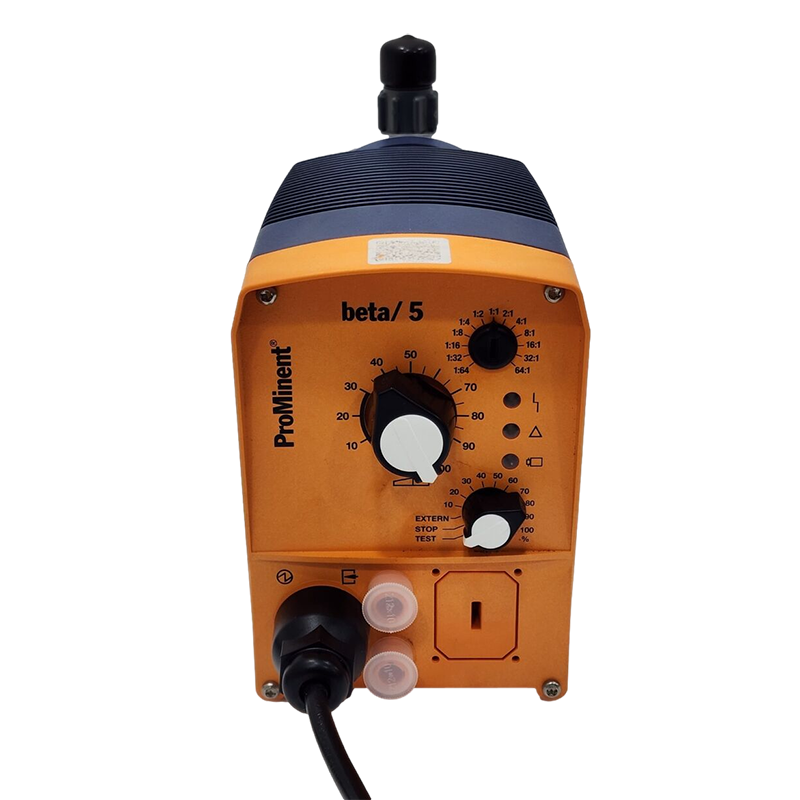

ProMinent beta/5 pump 1.82 gph/145 psi SS/PTFE

Code: BT5B1008TTT0000UD000

Product Type: Pumps

Item Type: Beta 5

Brand: Prominent

The ProMinent beta is a microprocessor-based diaphragm solenoid metering pump capable of flows from 0.16 to 8.45 gph (0.59 to 32 l/h) and pressures to 363 psi (25 bar).


Features and Benefits

  • Certified to NSF/ANSI 61 (acrylic or PVDF liquid ends)

  • 50% less power consumption

  • Auto-degassing liquid ends ideal for off-gassing chemicals such as bleach

  • Capable of handling up to 3000 cps of viscous media such as polymers

  • Integral bleed valve eliminates priming issues

  • Continuous monitoring of chemical supply with optional dual stage level switch

  • Adjustable stroke length and stroke frequency

  • Fault and pacing relays optional

  • Standard external control via potential-free contacts with pulse step-up and step-down to adapt to existing signal transducers of 64:1 to 1:64

  • (Optional) External control via standard 4-20 mA and potential-free contacts with pulse step-up and step-down of 32:1 to 1:32


Technical Details

  • Continuous stroke length adjustment from 0-100% (recommended 30-100%)

  • Supplied in PP, Acrylic, PVDF, PTFE, stainless steel

  • Patented deaeration for PP, Acrylic and PVDF

  • Self-degassing dosing head type in PP and Acrylic

  • HV liquid end for highly viscous media

  • Power supply 100 - 230 V as standard

  • 10-setting stroke frequency adjustment from 10-100 %

  • External control via voltage-free contacts

  • Connector for 2-stage level switch

  • 3 LED display for operation, warning, and fault indication



  • Industry:
    Aquaculture, Chemical, Clinical/Medical Lab, Drinking Water, Fertigation, Food & Beverage, Oil & Gas, Petroleum, Storm Water, Waste Water, Hospitality, Agriculture
