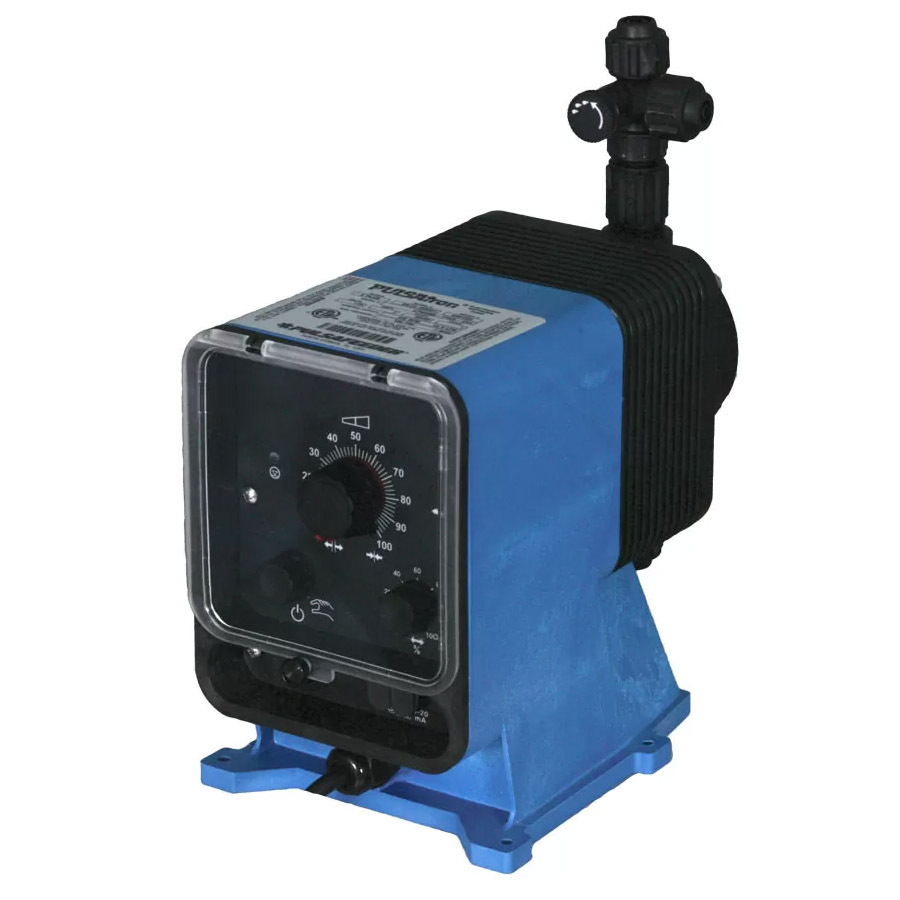

Pulsafeeder, Series E, 0.25gph,150psi, GFPP/TFE

The PULSAtron Series E pump features manual control by on-line adjustable stroke rate and stroke length. It has been agency approved for demanding outdoor and indoor applications. Pressure capabilities to 250 psi (17 bar) @ 5 gpd (0.8 lph) and flow capacities to 44 gpd @ 100 psi (7 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

Flow: 5 – 44 GPD (0.80 – 7 LPH) 0.21 – 1.85 GPH
Pressure: 100 – 250 PSI (7 – 17 BAR)

• Manual control by on-line adjustable stroke rate and stroke length.


• Highly reliable timing circuit


• Circuit protection against voltage and current upsets


• Solenoid protection by thermal overload with auto-reset


• Water resistant for outdoor and indoor applications


• Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics


• Few moving parts and wall mountable


• Safe and easy priming with durable leak-free bleed valve assembly (standard)

Specifications:

Pump Head Materials: GFPPL, PVC, PVDF, 316 SS
Fitting Material Available: GFPPL, PVC, PVDF
Bleed Valve: Same as fitting and check valve selected (except 316SS)
Turndown Ratio: 100:1
Seat O-Rings Available: PTFE, CSPE, Viton
Balls Available: Ceramic, PTFE, 316 SS, Alloy C
Diaphragms: PTFE-faced CSPE-backed
Tubing Available: Clear PVC, White PE, PVDF
Power Input: 115 VAC – 50/60 HZ -1 ph, 230 VAC – 50/60 HZ – 1 ph
Peak Input Power: 300 Watts, Average Input Power At Max SPM: 130 Watts
Average Current Draw: 115 VAC: Amps – 1.0, 230 VAC: Amps – 0.5

• Industry:
  Aquaculture, Chemical, Clinical/Medical Lab, Drinking Water, Fertigation, Food & Beverage, Oil & Gas, Petroleum, Storm Water, Waste Water, Hospitality, Agriculture
