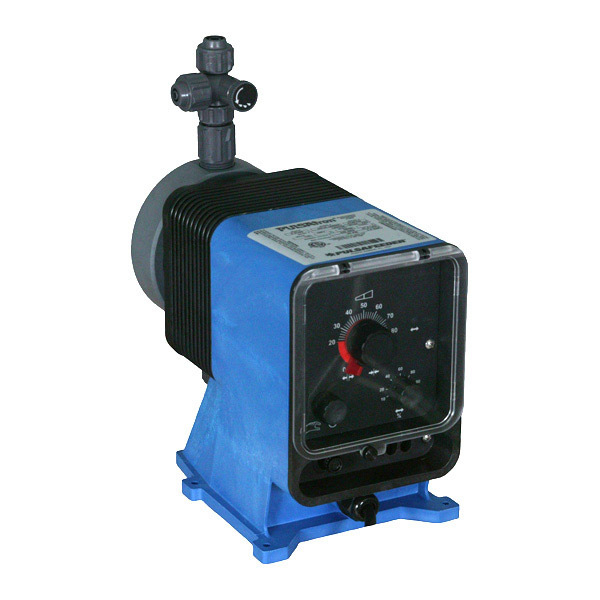

SERIES E+ 115 PVC/VTN/C, 12GPD at 150PSI .38T

The Pulsation Series E Plus offers manual control over stroke length and stroke rate as standard with the option to choose between 4-20mA and external pace inputs for automatic control. Twenty distinct models are available, having pressure capabilities to 300 psi (21 bar) @ 3 gpd (0.5 lph), and flow capacities to 600 gpd (94.6 lph) @ 30 psi (2 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within ± 2% of maximum capacity.

Over 25 years of excellence, PULSAtron pumps carry agency approvals of ETL, ETL Sanitation, CE and NSF 61 (PVDF material and PVC Degassing Head models).

• Automatic control available with 4-20mADC direct or external pacing with stop function


• Manual control by on-line adjustable stroke rate and stroke length


• Auto-Off-manual switch


• Highly reliable timing circuit


• Circuit protection against voltage and current upsets


• Panel mounted fuse


• Solenoid protection by thermal overload with auto-reset


• Water resistant for outdoor and indoor applications


• Indicator lights panel mounted


• Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics


• Safe and easy priming with durable leak-free bleed valve assembly (standard)

• Industry:
  Aquaculture, Chemical, Clinical/Medical Lab, Drinking Water, Fertigation, Food & Beverage, Oil & Gas, Petroleum, Storm Water, Waste Water, Hospitality, Agriculture
