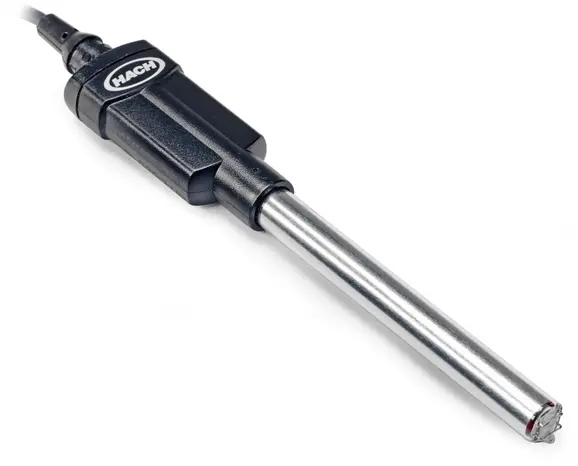

IntelliCAL? MTC695 is a double staples platinum probe with built-in temperature sensor. The probe is available with a 1 meter cable and is intended for titration use with Titralab AT1000 Series. The MTC695 is ideal for imposed current iodometric RedOx titration determining free and total chlorine, chlorine dioxide & sulfite in water, also sulfur dioxide in wine products applications. This probe is also applicable for moisture content determination according to Karl Fischer with TitraLab KF1000 Series.


Cable Length 1 m (3.28 ft)
Dimensions (D x L) 12 mm x 200 mm (7.87 in.)
Electrode Type Metal RedOx Titration, Pt-Pt
Length 200 mm (7.87 in.)
Method Type Titration Double Platinum Electrode
Parameter RedOx Titration
Probe Type Standard
Product Kit Model: MTC695
Accessories Included: None
Range ±1200 mV (±200 µA)
Sample depth 10 mm (0.394 in.)
Sensor material Epoxy
Sensor Type Platinum wires
Special Features Imposed current Redox Titration
Temperature Accuracy ±0.3 °C (±0.54 °F)
Temperature Range ñ10 - 80 °C (14 - 176 °F)
Temperature Resolution 0.1 °C (0.18 °F)
Test requirements Parameter Needed: RedOx Titration
Minimum Sample Depth (mm): 10
Thermistor ATC
Warranty 12 months
Weight 0.1 kg

• Industry:
  Aquaculture, Chemical, Clinical/Medical Lab, Drinking Water, Fertigation, Food & Beverage, Oil & Gas, Petroleum, Storm Water, Waste Water, Hospitality, Agriculture
